Stainless Steel Drops

Diameter: 3/4" (22mm)
To meet the requirements of compressed air and vacuum applications in harsh environments (food and beverage, pharmaceutical or laboratories), Transair® now offers a complete range of 3/4"(22mm) 316L stainless steel drops. These modular drops with instant connection technology are very easy to clean and are resistant to aggressive chemical agents. For food and beverage applications, these drops can be used in food or splash zones. Transair stainless steel pipe and drop connectors are made from 316L stainless steel, which is compatible to be in permanent food contact per FDA CFR21 requirements for food contact applications.

Transair Stainless Steel Drops can be connected to quick assembly brackets of Transair® Aluminium range and to quick assembly brackets of Transair® stainless steel range.
Click Here for Transair® Chemical Compatibility Chart
Click Here for Instructions for Assembly and Disassembly of Stainless Steel Drop Connectors

Note: California residents click here for Proposition 65 information

WARNING: This product can expose you to chemicals including Nickel and Nickel Compounds which is known to the State of California to cause cancer.
For more information go to www.p65Warnings.ca.gov

Call us TODAY at 727-835-0660 or
Toll Free at 800-761-4298

Request A Quote!


Stainless Steel Drops

FDA Compliant

3/4"(22mm) 316L Stainless Steel Pipe
*Scroll to the right on mobile to see entire chart
Product # DESCRIPTION
TF16 N7 00 3/4" (22MM) 316L STAINLESS STEEL PIPE (LENGTH: 20')

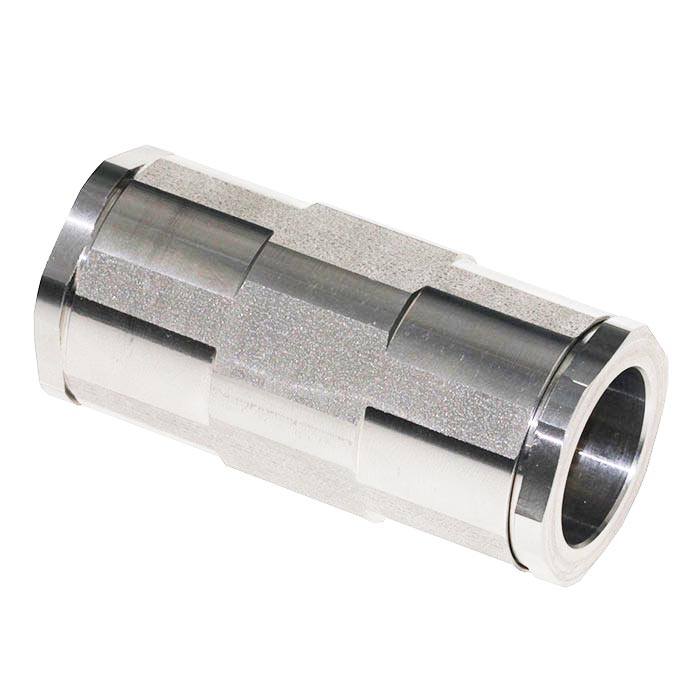

3/4"(22mm) 316L Union Connector

*Scroll to the right on mobile to see entire chart
Product # DESCRIPTION
RF06 N7 02 3/4" (22MM) 316L STAINLESS STEEL UNION CONNECTOR W/ FKM SEAL

3/4"(22mm) 316L 90 Degree Bent Pipe Elbow

*Scroll to the right on mobile to see entire chart
Product # DESCRIPTION
RF02 N7 00 3/4" (22MM) 316L STAINLESS STEEL 90° BENT PIPE ELBOW

3/4"(22mm) 316L 90 Degree Elbow W/ FKM Seal

*Scroll to the right on mobile to see entire chart
Product # DESCRIPTION
RF02 N7 02 3/4" (22MM) 316L STAINLESS STEEL 90° ELBOW W/ FKM SEAL

3/4"(22mm) 316L NPT Female Threaded Tee W/ FKM Seal

*Scroll to the right on mobile to see entire chart
Product # DESCRIPTION
RF04 06 00 3/4" (22MM) 316L STAINLESS STEEL FEMALE THREADED 3/4" NPT TEE W/ FKM SEAL

3/4"(22mm) 316L NPT Male Threaded Adapter

*Scroll to the right on mobile to see entire chart
Product # DESCRIPTION
RF05 N7N06 3/4" (22MM) 316L STAINLESS STEEL MALE THREADED 3/4" NPT ADAPTER

3/4"(22mm) 316L NPT 3 Port Wall Bracket

*Scroll to the right on mobile to see entire chart
Product # DESCRIPTION
RF36 06N04 3/4" (22MM) 316L STAINLESS STEEL 3 PORT 3/4" NPT WALL BRACKET (PLUGS NOT INCLUDED)

3/4"(22mm) 316L NPT Plug W/ FKM Seal

*Scroll to the right on mobile to see entire chart
Product # DESCRIPTION
EF27 00N04 3/4" (22MM) 316L STAINLESS STEEL NPT PLUG W/ FKM SEAL

3/4"(22mm) 316L NPT Female to Female Lockable Ball Valve

*Scroll to the right on mobile to see entire chart
Product # DESCRIPTION
VP502SS-12 3/4" (22MM) 316L STAINLESS STEEL 3/4" NPT FEMALE TO FEMALE LOCKABLE BALL VALVE

3/4"(22mm) 316L Fixing Clip

*Scroll to the right on mobile to see entire chart
Product # DESCRIPTION
EX01 N7 01 3/4" (22MM) STAINLESS STEEL FIXING CLIP

3/4"(22mm) Dismounting Ring

*Scroll to the right on mobile to see entire chart
Product # DESCRIPTION
EW11 N7 00 3/4" (22MM) DISMOUNTING RING
