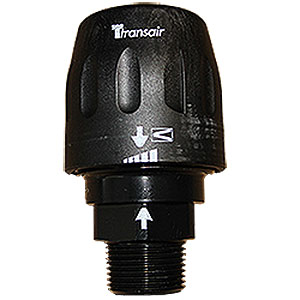

Male NPT Threaded Connectors

Diameter: 1/2" to 2 1/2"
TransairAluminumPipe.com is your complete source for Transair Male NPT Threaded Connectors. Transair Male NPT Threaded Connectors are quick and easy to install.
Click Here for Technical Data

Note: California residents click here for Proposition 65 information

WARNING: This product can expose you to chemicals including Lead and Lead Compounds which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov

Call us TODAY at 727-835-0660 or
Toll Free at 800-761-4298

Request A Quote!

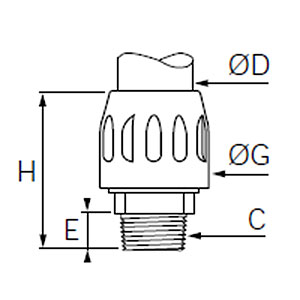

Connector dimensions





*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD
(in)		 ØD
(mm)		 C
(in)		 E
(in)		 ØG
(in)		 H
(in)		 Quick Ship
6605 17 14 1/2 16.5 1/4 3/8 1 3/8 2 1/2
6605 17 22 1/2 16.5 1/2 5/8 1 3/8 2 11/16
6605 25 22 1 25 1/2 5/8 1 3/4 2 3/4

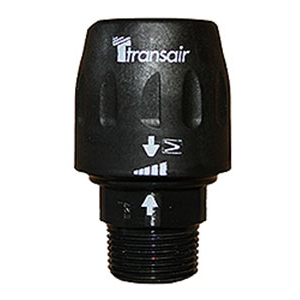

6605 25 28 1 25 3/4 5/8 1 3/4 2 13/16

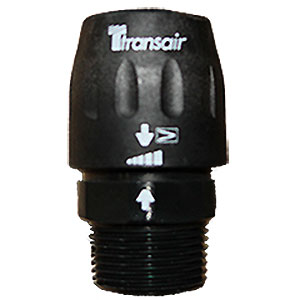

6605 25 35 1 25 1 5/8 1 3/4 2 13/16
6605 40 35 1 1/2 40 1 5/8 2 5/8 4 3/8

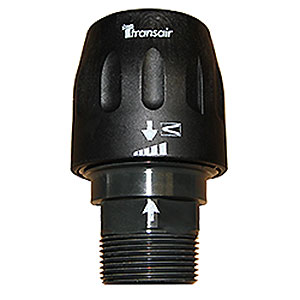

6605 40 43 1 1/2 40 1 1/4 1 2 5/8 4 3/8

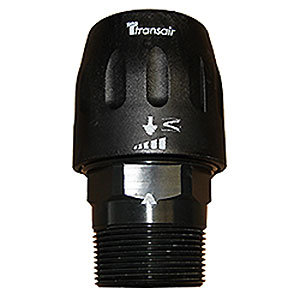

6605 40 50 1 1/2 40 1 1/2 1 2 5/8 4 1/2

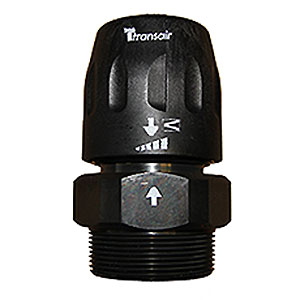

6605 40 44 1 1/2 40 2 15/16 2 5/8 4 3/8
6605-50-50 -

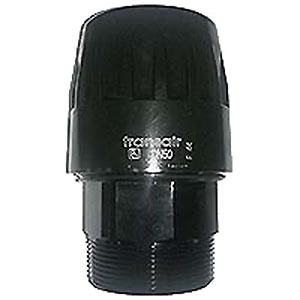

6605-50-44 6605-50-44 Click For Larger View

6605-63-41 -
6605-63-46 6605-63-44 Click For Larger View

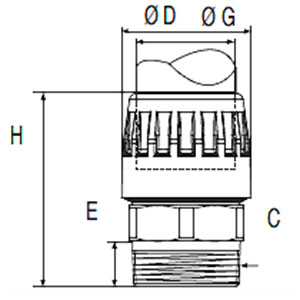

connectors-dimensions for 6605-50-50
*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD
(in)		 ØD
(mm)		 C
(in)		 E
(in)		 ØG
(in)		 H
(in)		 Quick Ship
6605 50 50 2 50 1 1/2 1 3 1/8 4 11/16
6605 50 44 2 50 2 1 3 1/8 4 3/4
6605 63 44 2 1/2 63 2 13/16 3 9/16 4 11/16
6605 63 41 2 1/2 63 2 1/2 1 3 9/16 5 1/8
6605 63 46 2 1/2 63 3 1 1/16 3 9/16 5 1/2

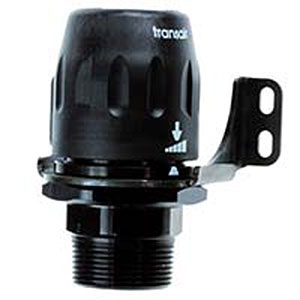

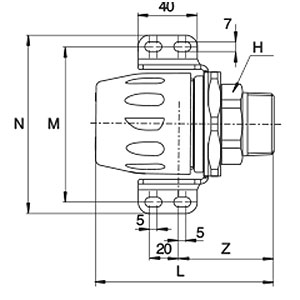

Male NPT Threaded Connectors with Fixing Plate

fix plate connector
*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD
(in)		 ØD
(mm)		 C
(in)		 H
(in)		 L
(in)		 M
(in)		 N
(in)		 Z
(in)
6615 25 22 1 25 1/2 1 1/16 3 2 5/8 3 1/4 3 1/4
6615 25 28 1 25 3/4 1 1/16 3 2 5/8 3 1/4 1 3/4
6615 25 35 1 25 1 1 7/16 3 2 5/8 3 1/4 2 1/16
6615 40 43 1 1/2 40 1 1/4 2 4 3/4 3 5/16 4 1/8 3
6615 40 50 1 1/2 40 1 1/2 2 4 3/4 3 5/16 4 1/8 3
6615 50 50 2 50 1 1/2 2 5 4 5/8 5 3/16 2 5/8
6615 50 44 2 50 2 2 3/8 5 4 5/8 5 3/16 2 5/8
