4 & 6 Port Manifolds

Diameter: 1" & 1 1/2" (25mm to 40mm)
TransairAluminumPipe.com is your complete source for Transair Manifolds. Transair Manifolds are quick and easy to install.
Click Here for Technical Data

Note: California residents click here for Proposition 65 information

WARNING: These products can expose you to chemicals including Lead and Lead Compounds which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.gov

Call us TODAY at 727-835-0660 or
Toll Free at 800-761-4298

Request A Quote!

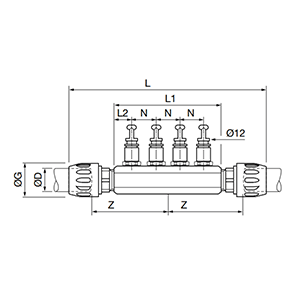

4 Port Manifolds


*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD in. (mm) Ports G in. (mm) L in. (mm) L1 in. (mm) L2 in. (mm) N in. (mm) Z in.
6651 25 12 04 1(25) 4 1 3/4(44.5) 10 11/16(271) 5 15/16(151) 15/16(23) 1 3/8(35) 4 1/4
6651 40 12 04 1 1/2(40) 4 2 5/8(67) 15 3/4(400) 8(204) 1 1/16(27) 2(50) 5 15/16
Supplied with four Ø12 mm plugs. 1" supplied with 3/8" BSPP ports. 1 1/2" supplied with 1/2" BSPP ports.

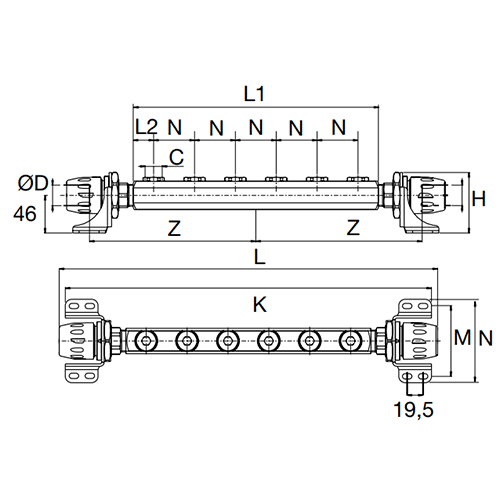

6 Port Manifolds


*Scroll to the right on mobile to see entire chart
Quantity Add to
Quote		 Product # ØD in. (mm) NPT in. Ports C in. L in. L1 in. L2 in. K in. N in. Z in. H in. M in.
6653 25 22 06 1(25) 1/2 6 1/2 18 1/4 11 13/16 1 17 5/8 2 8 2 15/16 3 3/8
6653 40 22 06 1 1/2(40) 1/2 6 1/2 20 11/16 12 3/16 1 18 7/16 2 8 9/16 3 1/4 4 1/8
Supplied with 1/2" NPT ports
