In-Line Reducers

Diameter: 1" to 6" (25mm to 168mm)
TransairAluminumPipe.com is your complete source for Transair Reducers. Transair Reducers are quick and easy to install.
Click Here for Technical Data

Call us TODAY at 727-835-0660 or
Toll Free at 800-761-4298

Get A Free Quote!
*Scroll to the right on mobile to see entire chart
Product # øD1(in) øD1(mm) øD2(in) øD2(mm) øG(in) L(in) Z(in) Quick Ship
6666 17 25 1 25 1/2 16.5 1 5/16 3 2
6666 25 40 1 1/2 40 1 25 1 3/4 3 7/8 2 13/16


*Scroll to the right on mobile to see entire chart
Product # øD1 (in) øD1 (mm) øD2 (in) øD2 (mm) øG (in) L (in) Z (in) Quick Ship
6666 25 50 2 50 1 25 1 49/64 3 13/16
6666 40 63 2 1/2 63 1 1/2 40 2 5/8 4 7/16 4 1/8
6666 40 50 2 50 1 1/2 40 2 5/8 4 7/16 4
6666 50 63 2 1/2 63 2 50 3 1/8 4 15/16 4 1/16


*Scroll to the right on mobile to see entire chart
Product # øD1 (in) øD1 (mm) øD2 (in) øD2 (mm) L (in) Quick Ship
RX64 L1 50 3 76 2 50 8 11/16
RX64 L1 63 3 76 2 1/2 63 9 1/16
RX64 L3 50 4 101 2 50 13 1/2
RX64 L3 63 4 101 2 1/2 63 9 13/16
RX66 L3 L1 4 101 3 76 7 9/16
Use one connector (RR01) to connect plug-in reducers (RX64) to Transair® pipes Ø 3" or Ø 4" and one connector (6606) to connect to Transair® pipe Ø 2 1/2".

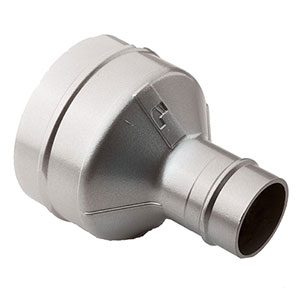

RA66 L8 L3 dimentions
*Scroll to the right on mobile to see entire chart
Product # øD1 (in) øD1 (mm) øD2 (in) øD2 (mm) L (in)
RA66 L8 L3 6 168 4 101 8 1/4
RA66 L8 L1 6 168 3 168 9 13/16
Use one connector (RR01) to connect plug-in reducers (RA66) to Transair® pipe.
